HydroExpert is a freeware Decision Support System applied to Multi-reservoir Systems Operation and Analysis. For more details, see our Feature Matrix.
Brazilian hydroelectric database (more than 150 plants).
Long and short term multi-reservoir and multi-criterion simulation model.
Optimal short term hydroelectric unit commitment (in development).

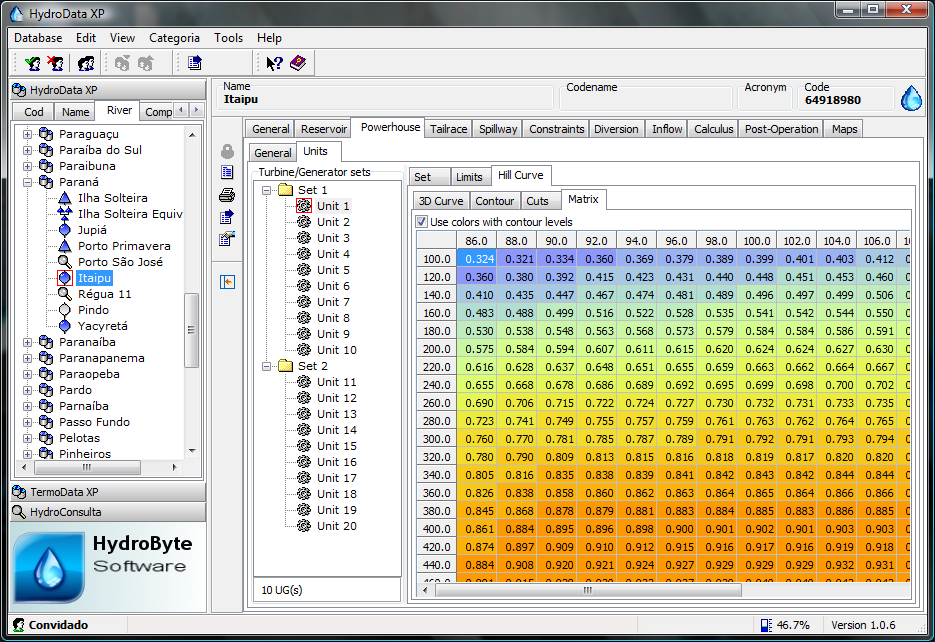

HydroData is a database application concerned with hydroelectric plants and reservoirs data organization.
Brazilian hydroelectric database (more than 150 plants). The database system can be customized to other multi-reservoir systems.
Managed elements: hydro plants, reservoirs and control points.
Database multi-plataform: Firebird (versions 1.x and 2.x) and SQL Server (versions 7, 2000, 2005 and 2008). Options to Oracle, MySQL and PostgreSQL are in development.
Friendly graphic interface with tab/categories organization. Technical charts and grids help user to analyze and consolidate reservoir and plants data.

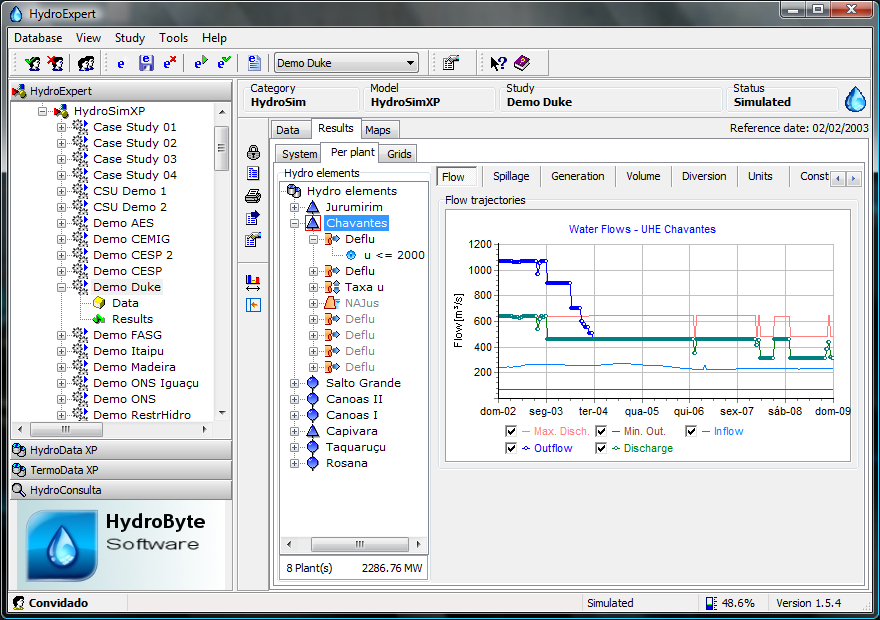

HydroSim XP is a multi-reservoir simulation model with multi-purpose constraints representation.
Detailed representation of hydroelectric production power function. Forebay and tailrace variable water levels. Turbine efficiency function (hill curves).

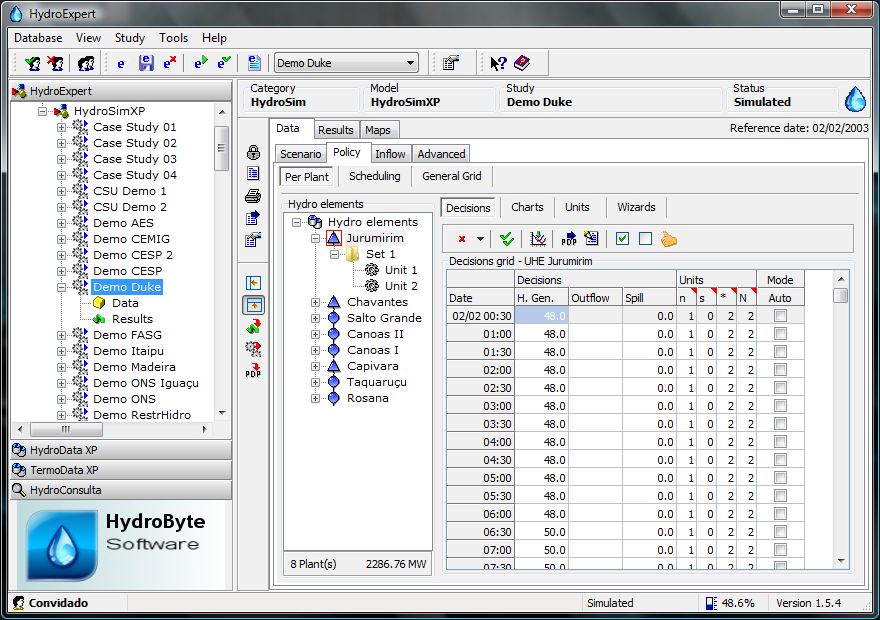

User defined operational policies: simulates decisions based on total discharges or hydro generation.
Configurable time intervals: half-hour, hour, day, week and month.
Simulates reservoirs, powerhouses, deviation structures (channels and tunnels) and control points/stations.
Multi-reservoir operation: up to 150 Brazilian hydro plants and reservoirs available into HydroData database.
Friendly and rich graphic interface with advanced resources for simulated operation analysis.
